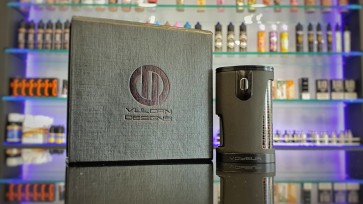

The Voyeur, a Mosfet operated squonker, designed to look sporty and elegant is a true unicorn.
The black delrin, the carbon fiber battery tube, a silver Moddog 510 and custom designed Dee bottles make this squonker an all-day device with character.

Features

  • Dual Mosfet (Bomber Pro) Squonker
  • Black delrin body, top and bottom plates black anodized stainless steel
  • Top and bottom plates black anodized stainless steel
  • Carbon fiber battery tube with red streaks
  • Upgraded Side switch (Rhuthenium)
  • Upgraded  gold plated battery cap
  • Custom Bottle System (Dee mods)
  • 75mm x  46mm x 25mm

Contents

  • Voyeur (Black Delrin with carbon fiber battery tube)
  • 2 x custom designed Dee bottles (6,5 ml capacity each)
  • Spare orings, bottle tubing
  • Warranty card with serial number
  • Vanity Box



Instructions (Please read carefully before usage)

  • Firing button can be locked by clicking the button 3 times to lock and the same to unlock. Please ensure to lock the firing button before placing mod into your pocket, bag or anywhere that will have the chance of accidental pressing of the firing button.
  • DO NOT turn the Atty in the 510 too hard. Just a light tightening. (Too hard will cause the pin to fall from the bottom of  the 510 connector)
  • The positive side of the battery will face downwards.
  • Special attention should be paid to the front plate surrounding the firing button and avoid any contact with water as the chip is placed right below it.
  • Maintain the darkness of the delrin body color by applying a thin layer of Vaseline or Vegetative oil (VG) once in a while (Delrin has a property of turning whitish after some time).
  • Rinse bottles before use. The stainless steel parts of the bottom feeders are removable. Even the bottle bottom puller (with Vulcan written on it) is removable by simply unscrewing them.
  • Do not screw the 2 parts of the bottle bottom puller too hard as it may over compress the silicone bottle and causes a change in shape which may, in turn, make it difficult to insert bottle into the mod.
  • 0.2 ohms & above will be the advisable resistance of coils. The maximum resistance the chip can handle will be 0.1 ohms but it is advisable not to always push it to its limit.
  • Warranty for the faulty chip will be 3 months from date of purchase. If chip becomes faulty after 3 months, the user will have to bear the cost of the chip & shipping to us. We will not charge for repairing service and shipping to the user will also be covered by us.
  • Minor scruffs may be present on Delrin body due to its properties and it is not considered as damaged.
  • 510 adjustable pin is made of silver. Silver is soft but the best for conduction. Please be very gentle when you place a screwdriver for adjustment and do not damage the sides of the pin.
  • Ensure to insert the straw to the SS cap of the bottom feeder. Cut the tube to fit nicely in the bottle. If the tube is too long, it may push the SS cap up and leave a gap when the O rings are wet which may cause leaking.
  • Prevent contact of the back part of the mod with materials that conducts electricity. An electric conductor that touches from the top to the bottom plate may cause an auto fire.

Additional Info

Additional Info

Manufacturer Vulcan Designs
